Detailinformationen |
|||
| Material: | Wolfram -Carbid | Oberflächenbehandlung: | Beenden Sie geerdet |
|---|---|---|---|
| Grade: | YG11C, YG15, YG15C, YG18, YG20 | Trs: | > 3000 N/mm3 |
| Härte: | 85-92 HRA | Dienstleben: | 10.000 - 30.000 Stunden |
| Dichte: | 14,4-13,5 g/cm3 | Durchmesser: | 10 bis 20 mm |
| Höhe: | 20-70 Millimeter | Kuppel: | SR5-SR10 |
| Fase: | R1.0-R5.0 | Gewicht: | 108-172 g |
| Stromquelle: | Elektrisch | Motortyp: | Elektrisch |
| Oberfläche: | Poliert | ||
| Hervorheben: | TRS > 3000 N/mm3 Tungsten Carbide Buttons,Hardness 85-92 HRA HPGR Studs,Polished Surface Carbide Studs |
||
Produkt-Beschreibung

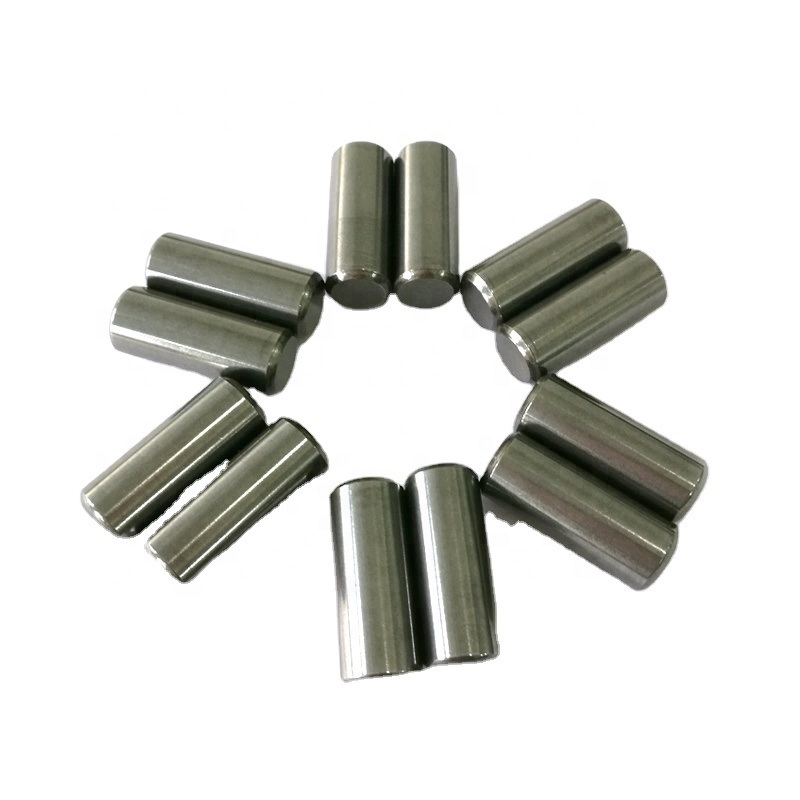

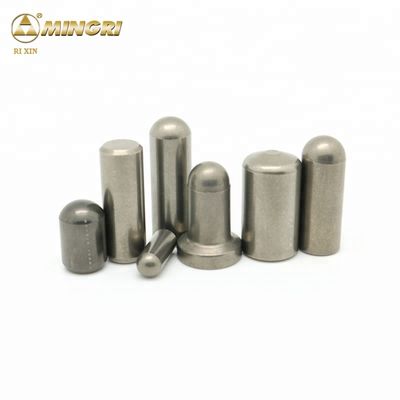

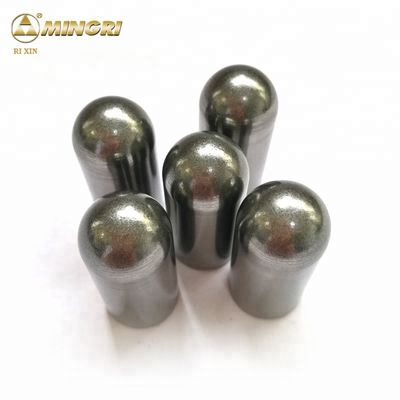

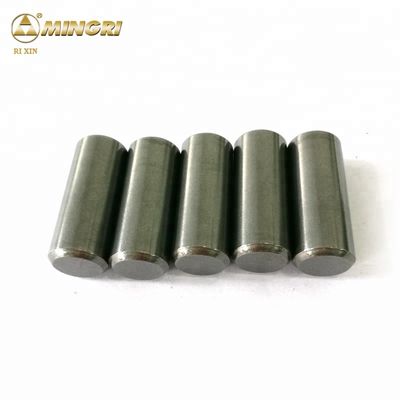

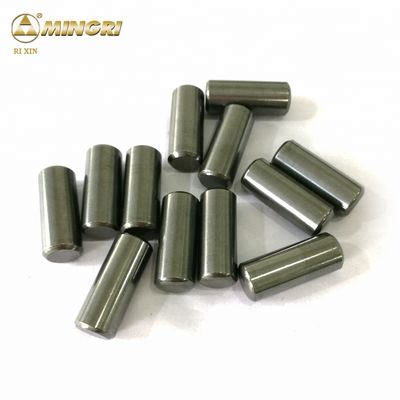

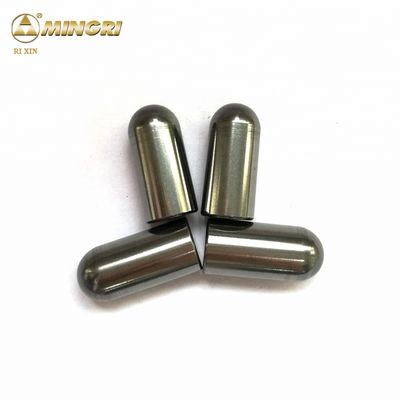

Premium Tungsten Carbide Ball Head Design Buttons
High-performance polished OEM tool parts for roller grinding press applications in mining and cement wear environments.
Product Specifications
| Item | Tungsten carbide studs |
|---|---|
| Grade | YG11C, YG15, YG15C, YG18, YG20 |
| Sizes | Standard or customized |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | High pressure grinding roller, iron ore, cement crushing |
High Pressure Grinding Roller is an energy-efficient crushing equipment utilizing new technologies, widely used in grinding cement clinker, limestone, and bauxite. Our premium carbide studs extend equipment life with exceptional wear resistance and high compressive strength.
Technical Specifications
| Grades | Density (g/cm3) | Hardness (HRA) | T.R.S ≥N/mm2 |
|---|---|---|---|
| RX-11 | 14.4 | 87 | 2700 |
| RX-15 | 14 | 87 | 3000 |
| RX650 | 13.8 | 88.2 | 3100 |
| RX20 | 13.5 | 85.5 | 3200 |
* Other grades available upon request. These exclusive grades offer excellent wear resistance and high strength for efficient metal processing.
Key Advantages
- Service life: 8000-10000 hours for iron ore crushing and over 25000 hours for cement crushing
- Total production capacity: over 800 tons of HPGR studs
Standard Sizes
Reference Dimensions (mm)
| Diameter | Height | Dome | Chamfer |
|---|---|---|---|
| 20 | 40 | SR10 | 2xR5.0 |
| 20 | 35 | SR10 | 2xR5.0 |
| 20 | 30 | SR10 | 2xR5.0 |
| 16 | 55 | SR8 | R2.0 |
| 16 | 45 | SR8 | 2xR5.0 |
* Custom sizes and configurations available to meet specific application requirements.
Quality Assurance
All products undergo strict ultrasonic inspection to ensure defect-free quality. Our high-density materials provide superior wear and impact resistance for extended service life.
Manufacturing Capabilities
We operate complete production facilities including powder mixing, pressing, sintering, and finishing workshops. Our monthly capacity exceeds 50 tons with rigorous quality control at every stage.
